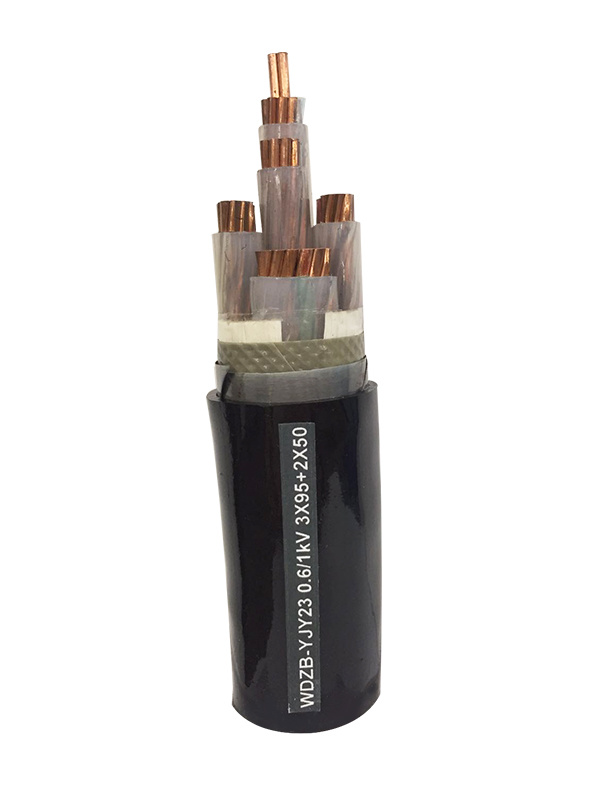

Low-smoke halogen-free power cable

It is suitable for use in high-rise buildings, centralized personnel and high environmental protection requirements.

The flame retardant performance is superior, the smoke released during combustion is less, the visibility is high, the amount of harmful gas released is less, and it is convenient for people to evacuate; the corrosiveness of combustion gas is small, and the damage of multi-instrument equipment is avoided.

Low-smoke halogen-free power cable

Product introduction

Low smoke halogen-free wires and cables produce very small amount of smoke under the condition of flame combustion, which releases gas without halogen and non-toxic. When fire occurs, it can greatly reduce the harm to instruments/equipment and human body, so it is widely used in high-rise buildings/hospitals, large libraries, stadiums, Disaster Prevention Command and dispatch buildings, stations and civil airports. Passenger waiting rooms, key cultural relics protection sites and subway, underground shopping malls or densely populated public places.

Our company develops and produces plastic insulated wires and cables with rated voltage of 35KV and below. Their performance not only meets the requirements of GB/T 12766-2008, GB/T 5023-2008 and GB/T 9330-2008, but also forms a series of flame-retardant, fire-resistant, especially low smoke and halogen-free properties, which meet the national standards GB/T 17650-1-2-1998 and GB/T 17651.1-2-1998. At the national level, sci tech novelty searches have reached the domestic advanced level of similar products.

Product type and name

Model	Name	Flame retardancy
WDZ-YJ（F）Y	(Irradiated) XLPE insulated low-smoke halogen-free flame-retarding PO sheathed power cable	A B C
WDZ-YJ（F）Y23	(Irradiated) XLPE insulated steel-tape armoured low-smoke halogen-free flame-retarding PO sheathed power cable
WDZ-YJ（F）Y33 WDZ-YJ（F）Y43	(Irradiated) XLPE insulated steel-tape armoured low-smoke halogen-free flame-retarding PO sheathed power cable
WDZ-YJ（F）Y	(Irradiated) XLPE insulated low-smoke halogen-free flame-retarding PO sheathed power cable
WDZN-YJ（F）Y	（(Irradiated) XLPE insulated low-smoke halogen-free flame-retarding PO sheathed fireproof power cable
WDZN-YJ（F）Y23	（(Irradiated) XLPE insulated steel-tape armoured low-smoke halogen-free flame-retarding PO sheathed fireproof power cable
WDZ-YJY	XLPE insulated low-smoke halogen-free flame-retarding PO sheathed power cable
WDZ-YJY23	XLPE insulated low-smoke halogen-free flame-retarding PO sheathed power cable
WDZ-YJY33 WDZ-YJY43	XLPE insulated steel-tape armoured low-smoke halogen-free flame-retarding PO sheathed power cable
WDZ-YJY	XLPE insulated low-smoke halogen-free flame-retarding PO sheathed power cable
WDZN-YJY	交XLPE insulated low-smoke halogen-free flame-retarding PO sheathed fireproof power cable
WDZN-YJY23	交XLPE insulated steel-tape armoured low-smoke halogen-free flame-retarding PO sheathed fireproof power cable
WDZ-KYJ（F）Y	(Irradiated) XLPE insulated low-smoke halogen-free flame-retarding PO sheathed control cable	A B C
WDZ-KYJ（F）Y23	（(Irradiated) XLPE insulated steel-tape armoured low-smoke halogen-free flame-retarding PO sheathed control cable
WDZ-KYJ（F）YP	Irradiated) XLPE insulated copper-wire braided shield low-smoke halogen-free flame-retarding PO sheathed control cable
WDZ-KYJ（F）YP2	(Irradiated) XLPE insulated copper-tape shielded low-smoke halogen-free flame-retarding PO sheathed control cable
WDZ-KYJ（F）Y33	(Irradiated) XLPE insulated steel-wire armoured low-smoke halogen-free flame-retarding PO sheathed control cable
WDZN-KYJ（F）Y	（(Irradiated) XLPE insulated low-smoke halogen-free flame-retarding PO sheathed fireproof control cable
WDZN-KYJ（F）Y23	rradiated) XLPE insulated steel-tape armoured low-smoke halogen-free flame-retarding PO sheathed fireproof control cable
WDZ-KYJY	XLPE insulated low-smoke halogen-free flame-retarding PO sheathed control cable
WDZ-KYJY23	XLPE insulated steel-tape armoured low-smoke halogen-free flame-retarding PO sheathed control cable
WDZ-KYJYP	XLPE insulated copper-wire braided shield low-smoke halogen-free flame-retarding PO sheathed control cable
WDZ-KYJYP2	XLPE insulated copper-tape shielded low-smoke halogen-free flame-retarding PO sheathed control cable
WDZ-KYJY33	XLPE insulated steel-wire armoured low-smoke halogen-free flame-retarding PO sheathed control cable
WDZN-KYJY	XLPE insulated low-smoke halogen-free flame-retarding PO sheathed fireproof control cable
WDZN-KYJY23	XLPE insulated low-smoke halogen-free flame-retarding PO sheathed fireproof control cable
WDZ-BYJ（F）	Low-smoke halogen-free flame-retarding XLPO insulated wire
WDZ-BY	Low-smoke halogen-free flame-retarding PO insulated wire
WDZN-BYJ（F）	Low-smoke halogen-free flame-retarding XLPO insulated fireproof wire
WDZN-BY	Low-smoke halogen-free flame-retarding PO insulated fireproof wire

Product technical performance

1. The maximum operating temperature and the maximum short-circuited (no more than 5 seconds) temperature of the wire and cable conductor: 70°Cfor the low-smoke halogen-free PVC insulated cable, with the maximum short-circuited temperature no higher than 160°C; 90°Cfor the XLPE insulated cable, 80°Cfor the thermoplastic low-smoke halogen-free PO insulated cable, with the maximum short-circuited temperature no higher than 250°C; 105°Cand 125°Cfor the irradiated XLPE insulated cable, with the maximum short-circuited temperature no higher than 250°C.

2. The installation conditions and allowable continuous current-carrying capacity of the low-smoke halogen-free cable are the same as that of the non-low-smoke halogen-free cable.
3. The cable and wire have low-smoke, halogen-free, flame-retarding and fireproof properties when burning, with specific indicators as shown in the following figure.

Serial number	Test project	Standard requirements
1	Single vertical burning test of wire and cable - Distance between the lower edge of upper bracket and the starting point of carbonized part - the distance that the combustion extends downward to the lower edge of the upper bracket	≥50mm ≤540mm
2	Standard requirements	≤2.5m
3	Fire resistance test	When burning for 90 min, apply the rated voltage and find that the 2A fuse is not fused
4	PH value	≥4.3
5	Weighted value of conductivity	≤10µs/mm
6	Cable smoke density test - the minimum light transmittance	≤60%
